7x - 108x Digital Microscope, LED or UV light source
Part Number: EQP-IHVT101
Price: $294.50
$294.50 4 White LEDs
$324.50 4 UV LEDs
|
Brief Description
Detailed Description
Specifications
Pressroom Magnification for the 21st CenturyThis may be the smallest and lightest portable digital microscope in the world. It is the ultimate loupe / magnifier for various applications requiring detail magnifications. This unique tool, slightly larger than a deck of cards, has a real time LCD display, image capture up to 60 photos (internal memory storage), adjustable focus, and adjustable LED light intensity. Moreover, it has a 262K color TFT LCD display, special image effect functions, easy-to-use control panel, PC interface, and software (CD ROM – Windows only) to upload or to evaluate the captured images. See detailed description for full specifications including image samples
Applications:• Printed and CtP plate dot analysis • Medical observation: hair observation, skin observation • Anti-counterfeit: false label, tiny print, forged money (Available with UV LEDs) • Quality checking: material, design, repair, metal surface, printing • Electron checking: SMT, PCB pattern • Education and research: biological samples, living creatures Full Specifications - Dimension (L x W x H): 4.78" x 2.20" x 0.81"
- CMOS sensor : 300,000 Pixels
- Display: 1.8" 262K color TFT LCD
- Camera Resolution: 640 x 480 VGA pixels
- Power supply: Rechargeable Ni-MH batteries (3 x AAA)
- Brightness: Four White light LEDs (Also available with UV LED)
- Magnifications: 1/∞, Optical: 7x~27x, Digital: 27x~108x
- Function Effects: Image View, Image Zoom In, Image Freeze
- Image effect: Gray, Emboss, Inverse, Dual View Special Function: Simple Scale
- Package includes: VT-101 digital microscope,
- manual, charger, USB cable, lens cloth, and software CD (Windows only)

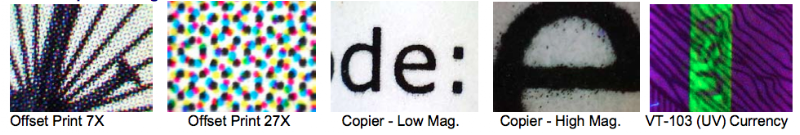

Actual Captured Images from the VT-101 Digital Microscope
